Low Power Industrial IoT Controller

Industrial-grade IoT kit with handmade SMPS, ESP8266, and ATmega2560 for analog and digital signal interfacing — assembled in China

Project Overview

Designed and developed an industrial-grade IoT controller kit intended as a versatile platform for IoT system integration in industrial environments. The board combines a handmade switched-mode power supply (SMPS), an ESP8266 Wi-Fi module, and an ATmega2560 microcontroller into a single compact PCB capable of interfacing with both analog and digital signals. The complete assembly was manufactured in China to production quality standards.

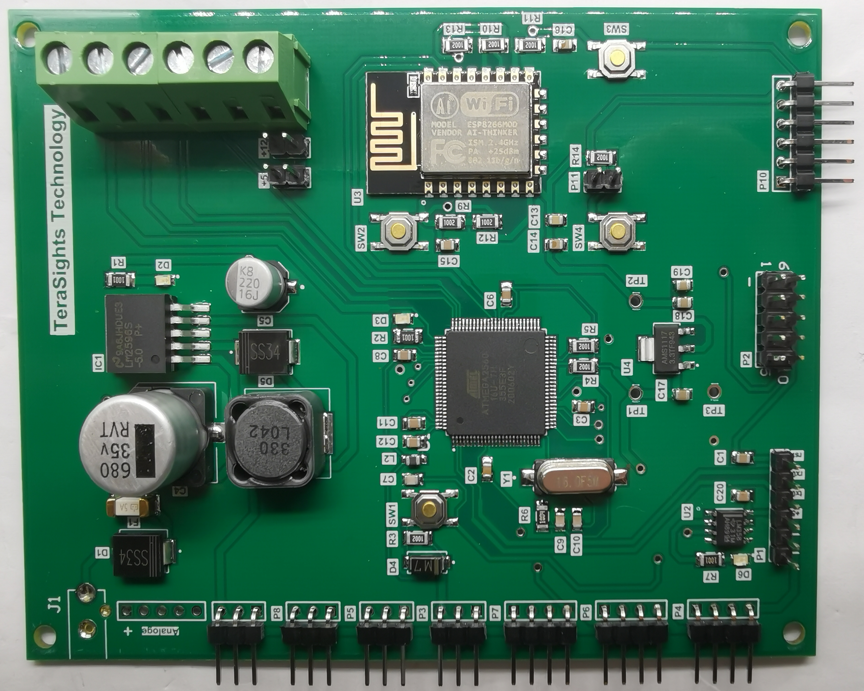

Assembled Production Board

Fully assembled production board showing the ESP8266 Wi-Fi module, ATmega2560 microcontroller, handmade SMPS section, and extensive analog/digital I/O connectors.

Key Features & Functionality

Signal Interfacing

  • Analog Input Handling: Dedicated analog input terminal blocks for sensor and signal acquisition
  • Digital I/O: Multiple digital input/output ports for actuator control and digital sensing
  • Screw Terminal Connectors: Industrial-grade terminal blocks for robust field wiring
  • Expansion Headers: Multi-pin headers for additional modules and peripheral connections

Wireless Connectivity

  • ESP8266 Wi-Fi Module: AI-Thinker ESP8266MOD running at 2.4 GHz for wireless data transmission
  • IoT Ready: Direct integration with cloud platforms, MQTT brokers, and local networks
  • OTA Capability: Supports over-the-air firmware updates via Wi-Fi

Processing Power

  • ATmega2560 Microcontroller: High-pin-count AVR MCU handling real-time signal processing, control logic, and peripheral management
  • Dual-MCU Architecture: ESP8266 handles Wi-Fi/cloud communication while ATmega2560 manages I/O and control
  • Crystal Oscillator: External crystal for precise timing and reliable operation

Power Supply

  • Handmade SMPS: Custom-designed switched-mode power supply built directly on the PCB
    • Buck converter topology with power inductor (330µH)
    • Large bulk capacitors (680µF / 35V) for energy storage and filtering
    • Schottky diodes (SS34) for efficient rectification and low-loss operation
    • Low-dropout regulation for sensitive digital circuits
  • Industrial Input Range: Designed to accept a wide DC input voltage range suitable for industrial environments

Technical Implementation

Hardware Architecture

PCB Design:

  • Single-board integration of power, processing, and I/O functions
  • Compact layout optimized for industrial enclosure mounting
  • Clearly labeled board silkscreen for easy field assembly and maintenance
  • Manufactured and assembled professionally in China

Core Components:

Component Part Role
Wi-Fi Module ESP8266MOD (AI-Thinker) Wireless connectivity & IoT communication
Microcontroller ATmega2560 Real-time I/O control & signal processing
Power Inductor 330µH SMPS energy storage element
Bulk Capacitor 680µF / 35V Input filtering & energy reservoir
Schottky Diode SS34 SMPS rectification & protection

I/O Capabilities:

  • Screw terminal blocks along the left and bottom edge for analog signal wiring
  • Pin headers on the right side for digital expansion and module stacking
  • Push-button switches for local user input and reset control
  • Test points for in-circuit measurement and debugging

Power Supply Design

The on-board SMPS is a key design element, replacing a bulky external power brick with an integrated, efficient regulator:

  • Topology: Buck (step-down) converter
  • Energy Storage: 330µH power inductor with low DC resistance
  • Filtering: 680µF electrolytic capacitor provides stable rail voltage
  • Rectification: SS34 Schottky diode minimizes forward voltage drop and switching losses
  • Output: Clean regulated DC rail powering both the ESP8266 and ATmega2560 subsystems

Dual-MCU Communication

The ESP8266 and ATmega2560 communicate over a serial (UART) link:

  • ATmega2560 handles all real-time I/O operations, sensor reading, and actuator control
  • ESP8266 receives processed data from ATmega2560 and forwards it to the cloud or receives remote commands to pass back
  • This separation of concerns ensures reliable real-time performance alongside robust wireless connectivity

Applications

  • Industrial sensor data acquisition and remote monitoring
  • Smart factory I/O nodes
  • Agricultural and environmental monitoring stations
  • Building automation and HVAC control
  • Prototype platform for IoT product development

Technologies & Tools

Hardware Design:

  • PCB design and layout (schematic capture, routing)
  • Switched-mode power supply design and component selection
  • Signal integrity considerations for mixed analog/digital board

Hardware Components:

  • ESP8266MOD (AI-Thinker) — 802.11 b/g/n Wi-Fi SoC
  • ATmega2560 — 8-bit AVR microcontroller, 256KB Flash, 8KB SRAM
  • Custom SMPS: 330µH inductor, 680µF/35V capacitor, SS34 Schottky diodes
  • Industrial screw terminal blocks and expansion headers

Software:

  • Arduino / AVR-GCC for ATmega2560 firmware
  • Arduino ESP8266 core / AT firmware for Wi-Fi communication
  • MQTT / HTTP protocols for IoT cloud integration

Manufacturing:

  • Full PCB assembly (PCBA) completed in China
  • SMD and through-hole components professionally soldered

Key Achievements

✅ Designed a self-contained industrial IoT platform on a single PCB
✅ Built a custom SMPS directly on-board, eliminating the need for external power supplies
✅ Integrated dual-MCU architecture balancing real-time control with wireless connectivity
✅ Supported both analog and digital signal interfacing for versatile industrial use
✅ Achieved professional-grade assembly quality through China manufacturing
