Electronic Impound & Monitoring Unit

Ultra-low-power vehicle impound monitoring system with 12-month battery life, tamper detection, and secure tracking for law enforcement operations

Project Overview

Designed and developed an official electronic impound and monitoring unit for law enforcement vehicle impound operations in Abu Dhabi. This mission-critical system provides continuous vehicle tracking, tamper detection, and secure immobilization capabilities with ultra-low power consumption enabling 12+ months of autonomous operation. The device operates in extreme environmental conditions and includes comprehensive security features for police deployments.

Final Assembled Device

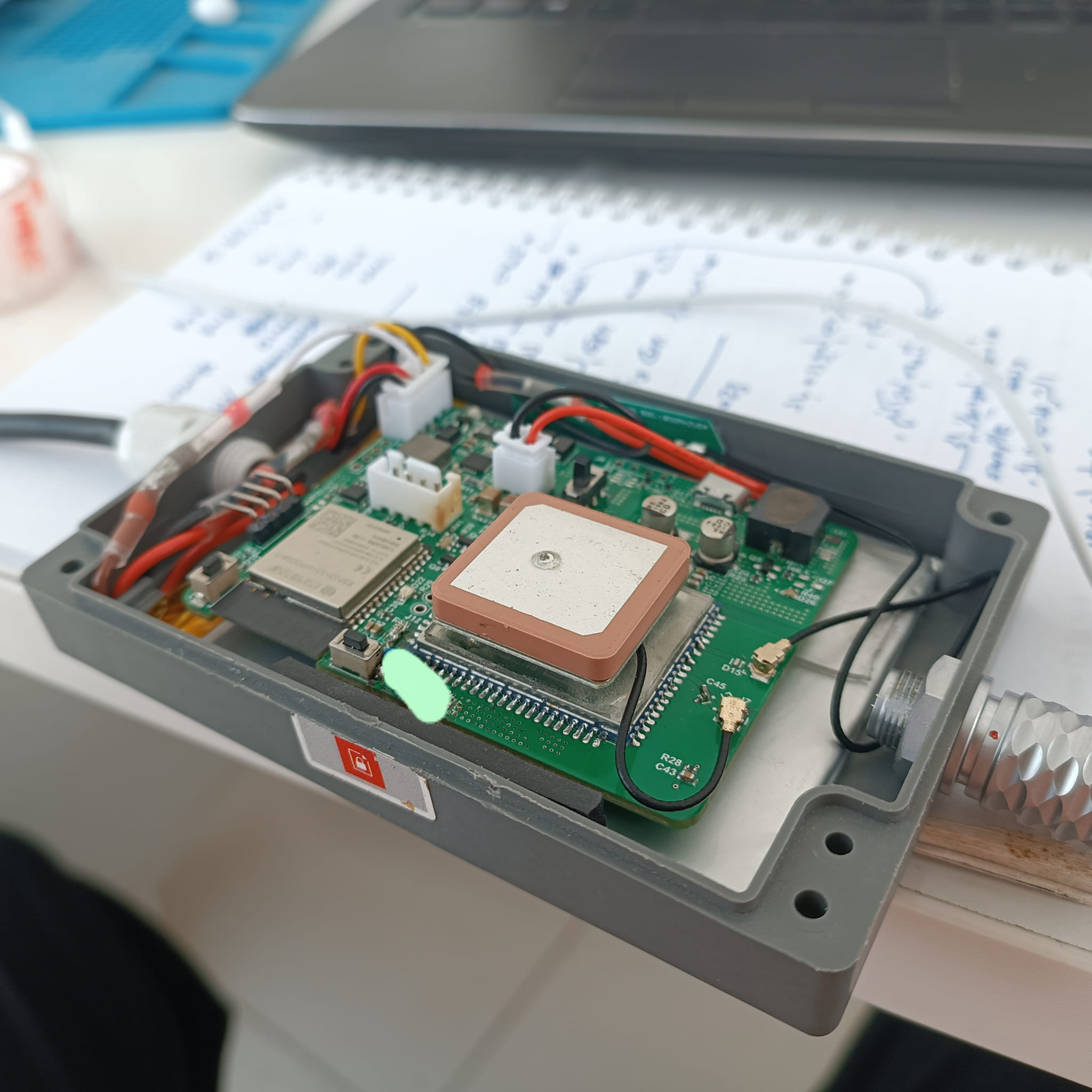

Final assembled Electronic Impound & Monitoring Unit inside its enclosure — showing the ceramic GPS patch antenna, LTE cellular module, power harness, external antenna connector, and green status LED confirming active operation.

Production Board Views

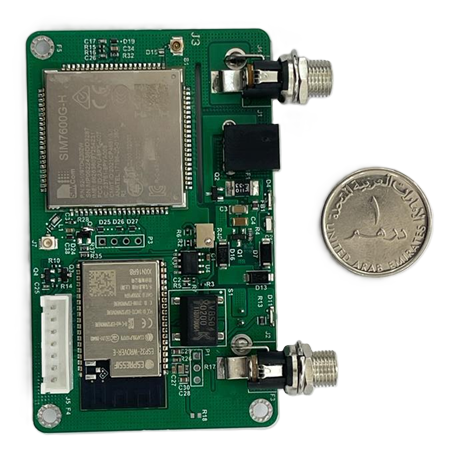

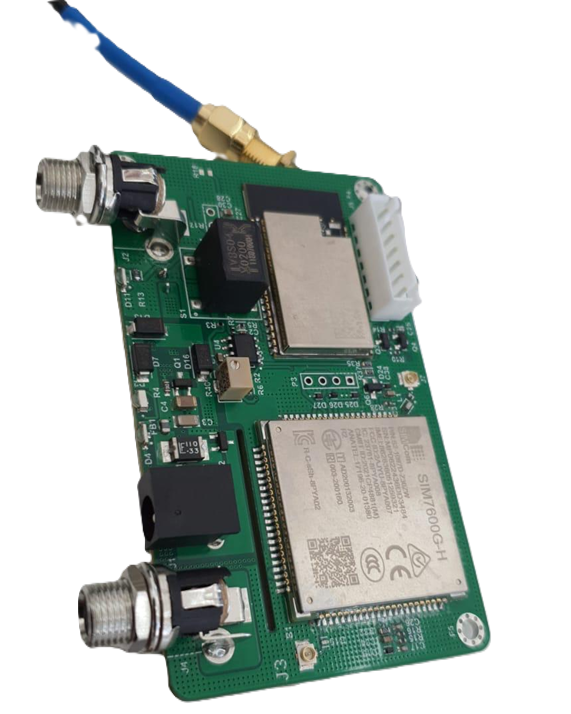

Production PCB showing compact design optimized for ultra-low power consumption and extended battery life.

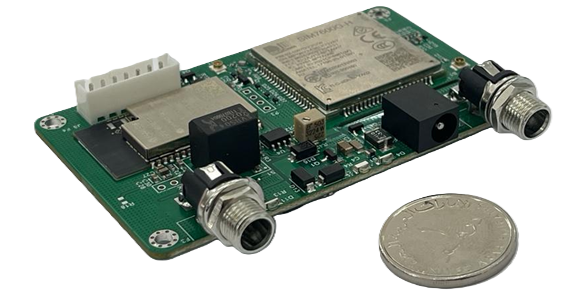

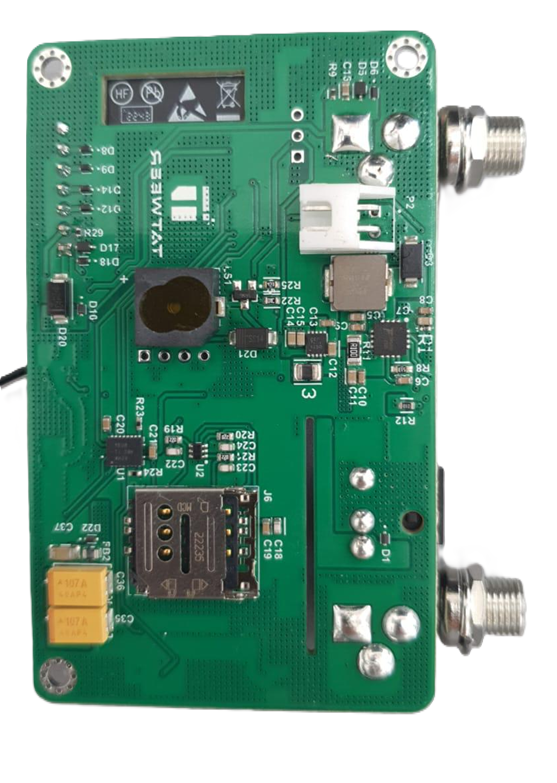

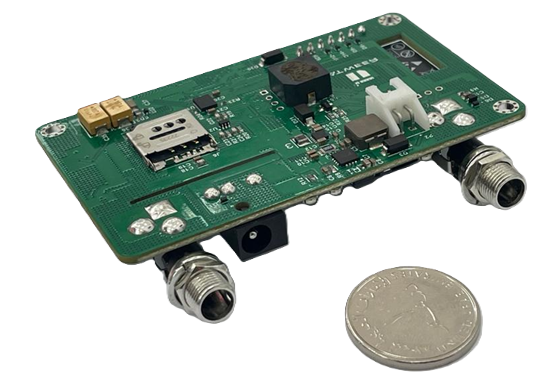

Detailed PCB layouts showing power distribution, signal routing, and component placement optimized for ultra-low power operation.

Key Features & Functionality

Vehicle Tracking & Monitoring

  • Multi-Constellation GNSS: GPS, GLONASS, Galileo, and BeiDou support with Assisted GNSS (A-GNSS) for faster acquisition
  • Intelligent State Machine: Deep Sleep → Wake Confirm → Stationary Monitor → Moving Track → Alarm/Report
  • Motion Detection: IMU-based accelerometer with low-power wake interrupts for efficient motion detection
  • Breadcrumb Tracking: Continuous location logging with rate-limited reporting to conserve power
  • Geofencing: Configurable geofence boundaries with allowed movement windows

Tamper Detection & Security

  • Enclosure Tamper Detection: Enclosure open switch monitoring
  • Power Cut Detection: Detects main power disconnection attempts
  • Antenna Disconnect Detection: Monitors antenna connection integrity
  • Battery Disconnect Detection: Backup battery enables tamper detection even when main power is cut
  • Secure Authentication: Mutual authentication between device and server using certificates/keys stored in secure element

Ultra-Low Power Operation

  • 12+ Month Battery Life: Optimized for extended autonomous operation
  • Deep Sleep Mode: Ultra-low quiescent current sleep rail (<50µA typical)
  • IMU Wake Interrupts: Motion-triggered wake-up eliminates need for continuous GNSS polling
  • Intelligent Debouncing: Motion confirmation logic prevents false alarms and reduces power consumption
  • Store-and-Forward: Local data buffering for network dead zones

Communication & Security

  • Cellular Connectivity: LTE Cat-1/4 or LTE-M/NB-IoT depending on coverage and latency requirements
  • Encrypted Transport: TLS encryption for all communications
  • Signed Commands: Cryptographic signature verification for all server commands
  • Device Identity: Secure element-based certificate storage for device authentication
  • Event Reporting: Motion, tow, ignition, jammer suspected, enclosure opened, and power cut events

Technical Implementation

Hardware Architecture

PCB Design:

  • Multi-layer Design: Optimized PCB layout using Altium Designer
  • Power Distribution: Dedicated low-quiescent power rails for sleep mode
  • Thermal Management: Component selection and layout for extreme Abu Dhabi temperatures
  • Signal Integrity: Careful routing for GNSS and cellular coexistence

Core Components:

  • Cellular Module: LTE Cat-1/4 or LTE-M/NB-IoT module for reliable connectivity
  • GNSS Receiver: Multi-constellation GNSS with A-GNSS support for fast acquisition
  • IMU Sensor: Low-power accelerometer with wake interrupt capability
  • Microcontroller: Ultra-low-power MCU optimized for battery operation
  • Secure Element: Hardware security module for certificate and key storage
  • Backup Battery: Optional but critical for tamper detection and extended operation

Automotive Power Front-End:

  • Wide Input Range: 9-36V DC automotive input
  • Reverse Polarity Protection: Schottky diode and MOSFET-based protection
  • Load Dump Protection: TVS diodes and clamping circuits for automotive transients
  • Surge Protection: Protection against inrush and surge currents
  • Low Quiescent Sleep Rail: Critical ultra-low power rail (<50µA) for extended battery life
  • Backup Battery System: Enables operation and tamper detection when main power is disconnected

Tamper Sensors:

  • Enclosure Open Switch: Magnetic or mechanical switch for enclosure monitoring
  • Power Cut Detection: Voltage monitoring for main power disconnection
  • Antenna Disconnect Detection: RF monitoring for antenna integrity
  • Battery Disconnect Detection: Backup battery enables detection of main power tampering

Firmware & Logic Implementation

State Machine Architecture:

  • Deep Sleep State: Ultra-low power mode with IMU wake interrupts enabled
  • Wake Confirm State: Initial wake-up and system health check
  • Stationary Monitor State: Low-power monitoring with periodic position checks
  • Moving Track State: Active tracking with increased reporting frequency
  • Alarm/Report State: Event reporting and server communication

Intelligent Debouncing Strategy:

  • Motion Persistence Confirmation: Motion must persist for N seconds before state transition
  • Displacement Threshold: Confirms actual movement exceeds minimum threshold
  • Rate-Limited Alarms: Prevents alarm spam while maintaining critical event reporting
  • Breadcrumb Logging: Continuous position logging with intelligent sampling rates

Power Management:

  • Adaptive Sampling Rates: Dynamic adjustment based on vehicle state
  • GNSS Duty Cycling: Periodic position fixes instead of continuous tracking
  • Cellular Power Gating: Radio powered only during communication windows
  • Sensor Wake Optimization: IMU interrupts minimize active time

Communications & Backend Integration

Security Architecture:

  • Mutual Authentication: Device and server authenticate each other using certificates
  • TLS Encryption: All data transport encrypted using TLS 1.2+
  • Signed Commands: Server commands cryptographically signed and verified
  • Secure Storage: Certificates and keys stored in hardware secure element
  • Audit Logging: Comprehensive logs of all commands, events, and state changes

Backend Rules & Policies:

  • Geofence Management: Configurable boundaries with allowed movement windows
  • Event Classification: Motion, tow, ignition, jammer suspected, enclosure opened, power cut
  • Privacy Compliance: Data retention policies and privacy controls
  • Command Audit: Strict logging of who sent what command and when

Network Resilience:

  • Store-and-Forward: Local buffering for network dead zones
  • Retry Mechanisms: Automatic retry with exponential backoff
  • Connection Management: Efficient connection establishment and teardown

Critical Design Challenge: Ultra-Low Power Operation

Problem Statement: Achieving 12+ months of battery life while maintaining reliable tracking, tamper detection, and communication capabilities in extreme Abu Dhabi environmental conditions.

Solution Implementation:

  1. Power Architecture:
    • Dedicated ultra-low quiescent current sleep rail (<50µA)
    • Power gating for all non-essential subsystems
    • Efficient DC-DC conversion with low quiescent current regulators
    • Backup battery system for extended operation
  2. Intelligent Wake Strategy:
    • IMU-based motion detection with interrupt-driven wake
    • Eliminates need for continuous GNSS polling
    • Adaptive wake intervals based on vehicle state
    • Minimal active time for all subsystems
  3. Component Selection:
    • Ultra-low-power microcontroller selection
    • Low-power GNSS receiver with duty cycling
    • Efficient cellular module with power management
    • Low-leakage components throughout
  4. Firmware Optimization:
    • State machine minimizes active time
    • Debouncing prevents unnecessary wake cycles
    • Rate-limited reporting reduces communication overhead
    • Efficient data structures and algorithms

Results Achieved:

  • Successfully achieved 12+ months of battery life
  • Maintained reliable tracking and tamper detection
  • Zero power-related failures in field deployment
  • Extended operation even with main power disconnected

Practical Challenges: Abu Dhabi Conditions

Heat Management:

  • Enclosure Design: Ventilation and thermal management for extreme temperatures
  • Battery Safety: Temperature monitoring and protection for backup battery
  • Component Derating: All components selected with appropriate temperature derating
  • Thermal Simulation: Validated design for 50°C+ ambient conditions

GNSS Performance:

  • Urban Multipath: Advanced filtering algorithms for urban canyon environments
  • Confirmation Logic: Multiple position fixes required before state changes
  • A-GNSS Integration: Assisted GNSS for faster acquisition in challenging conditions
  • Signal Quality Monitoring: Continuous assessment of GNSS signal quality

Network Coverage:

  • Dead Zone Handling: Store-and-forward capability for network outages
  • Multi-band Support: Flexible cellular module selection based on coverage
  • Connection Resilience: Robust connection management and retry logic
  • Data Prioritization: Critical events prioritized over routine updates

Safety & Policy Compliance

Immobilization Safety:

  • Stationary-Only Disable: Immobilization only when vehicle is confirmed stationary
  • Safety Interlocks: Multiple confirmation steps before immobilization
  • Emergency Override: Manual override capabilities for authorized personnel

Audit & Compliance:

  • Comprehensive Audit Logs: All commands, events, and state changes logged
  • Command Attribution: Who sent what command and when
  • Data Retention: Configurable retention policies
  • Privacy Controls: Compliance with data protection regulations

Deployment Safety:

  • Authorized Personnel Only: Secure authentication for all operations
  • Command Verification: Multi-factor verification for critical commands
  • Rollback Capability: Ability to reverse commands if needed

Performance Metrics

  • Battery Life: 12+ months of continuous operation
  • Sleep Current: <50µA typical quiescent current
  • GNSS Accuracy: <5 meters positioning accuracy
  • Wake Time: <2 seconds from deep sleep to active tracking
  • Temperature Range: Operates reliably from -40°C to +85°C (tested up to 55°C ambient)
  • Tamper Detection: <1 second response time for enclosure/power tamper events
  • Network Resilience: 99%+ data delivery rate with store-and-forward

Testing & Validation

  • Power Consumption Testing: Validated 12+ month battery life in laboratory conditions
  • Environmental Testing: Validated operation in extreme temperature and humidity
  • GNSS Testing: Validated performance in urban, suburban, and open-field conditions
  • Tamper Testing: Comprehensive testing of all tamper detection mechanisms
  • Security Testing: Penetration testing and security audit
  • Field Testing: Extended real-world deployment validation

Technologies & Tools

Hardware Design:

  • Altium Designer (PCB design and layout)
  • PDN analyzer in Altium Designer
  • Thermal simulation tools
  • Signal integrity analysis
  • Power consumption analysis tools

Hardware Components:

  • Ultra-low-power microcontroller
  • LTE Cat-1/4 or LTE-M/NB-IoT cellular modules
  • Multi-constellation GNSS receivers with A-GNSS
  • Low-power IMU sensors with wake interrupts
  • Hardware secure elements
  • Automotive-grade power management ICs
  • Backup battery systems

Software:

  • Embedded C programming
  • Real-time operating system (RTOS)
  • State machine implementation
  • Cryptographic libraries for TLS and signatures
  • GNSS filtering and processing algorithms
  • Power management firmware

Testing Equipment:

  • Power analyzers for current consumption measurement
  • GNSS simulators for testing
  • Environmental chambers for thermal testing
  • Network simulators for cellular testing
  • Security testing tools

Key Achievements

✅ Designed ultra-low-power system achieving 12+ months of battery life
✅ Implemented comprehensive tamper detection with backup battery support
✅ Developed intelligent state machine with motion debouncing
✅ Integrated multi-constellation GNSS with A-GNSS support
✅ Achieved secure communication with mutual authentication and TLS encryption
✅ Validated operation in extreme Abu Dhabi environmental conditions
✅ Complied with safety and policy requirements for law enforcement deployments
