Universal Embedded Systems Learning Kit

All-in-one embedded learning platform supporting AVR, PIC, Arduino, and ARM — packed with modules and interfaces on a 4-wheel robot chassis for hands-on microcontroller programming education

Project Overview

Designed a universal embedded systems learning kit to simplify and accelerate the learning of embedded programming. The kit is compatible with four microcontroller families — AVR, PIC, Arduino, and ARM — and includes a rich set of onboard modules and interfaces so learners can immediately practice peripherals without any additional hardware. The entire kit is mounted on a 4-wheel robot chassis, allowing students to also run motion and robotics experiments in addition to standard embedded programming exercises.

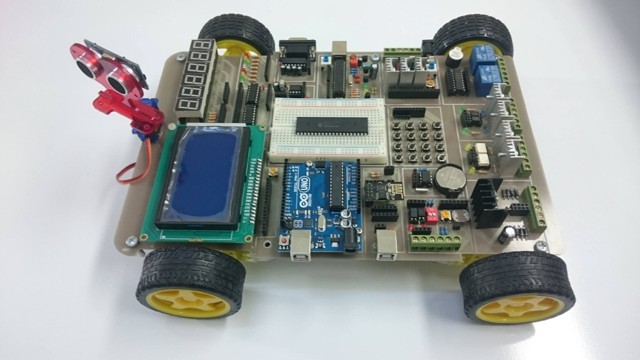

Universal embedded learning kit mounted on a 4-wheel robot chassis — featuring Arduino Mega, DIP MCU socket (PIC/AVR), 20×4 LCD, 7-segment display, ultrasonic sensor on servo, 4×4 keypad, relay, motor drivers, RS232, and a central breadboard area for custom experiments.

Supported Microcontroller Families

Platform Interface
Arduino Arduino Mega (ATmega2560) mounted on-board
AVR DIP socket — ATmega8/16/32 compatible
PIC DIP socket — PIC16F/PIC18F compatible
ARM Header connector for ARM module

Onboard Modules & Interfaces

  • 20×4 LCD Display — character display for output and status
  • 7-Segment Display — numeric output for counter and value display exercises
  • Ultrasonic Sensor (HC-SR04) — mounted on a servo for distance measurement and scanning
  • Servo Motor — position control exercises
  • 4×4 Keypad Matrix — user input interface
  • Relay Module — high-power load switching exercises
  • Motor Driver — DC motor speed and direction control via the robot chassis wheels
  • RS232 (DB9) — serial communication exercises
  • Breadboard Area — custom circuit prototyping space
  • Screw Terminals — external sensor and actuator connections
  • 4-Wheel Robot Chassis — enables motion control, obstacle avoidance, and line-following experiments

Learning Applications

The kit covers the full embedded systems curriculum:

  1. GPIO — LED blinking, button input, keypad scanning
  2. Timers & PWM — servo control, motor speed, tone generation
  3. ADC — analog sensor reading and conversion
  4. UART / Serial — RS232 communication, PC terminal exercises
  5. LCD & Display — 20×4 character LCD, 7-segment driver
  6. Sensors — ultrasonic distance measurement with servo scanning
  7. Relays — high-power switching and control
  8. Robotics — motor control, obstacle avoidance, autonomous navigation

Technologies & Tools

  • Custom PCB design — multi-MCU compatible board
  • Arduino IDE — Arduino / AVR programming
  • MPLAB / XC8 — PIC programming in C
  • Keil / STM32CubeIDE — ARM programming
  • Motor driver and power stage design

Key Achievements

✅ Designed a single kit compatible with AVR, PIC, Arduino, and ARM
✅ Integrated 10+ onboard modules covering the full embedded systems curriculum
✅ Robot chassis enables motion and robotics experiments beyond standard peripherals
✅ Ultrasonic sensor on servo enables scanning and obstacle detection projects
✅ Breadboard area allows custom circuit extensions for advanced experiments
✅ Simplifies embedded learning — plug in your MCU and start coding immediately
