Custom CNC Machine Controller — PIC Microcontroller

Custom-built multi-axis CNC controller using PIC microcontrollers — receives G-code from PC via parallel port, generates stepper motor sequences for X/Y/Z axis motion control

Project Overview

Designed and built a custom CNC machine controller from scratch using PIC microcontrollers. The system receives G-code motion commands from a PC via the parallel port (LPT), decodes step and direction signals, and drives stepper motors for multi-axis (X/Y/Z) CNC motion. The entire controller — including the PIC firmware, driver board, and parallel port interface — was designed and hand-etched as custom PCBs.

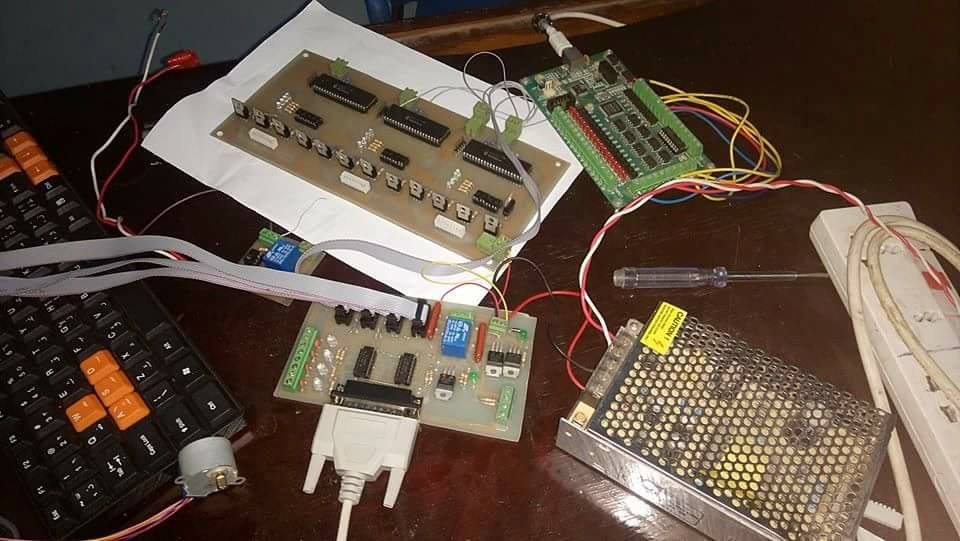

Custom hand-etched PIC controller board with three Microchip PIC DIP40 microcontrollers and stepper driver IC arrays (left). Full system setup showing the PIC controller board, CNC stepper driver board, parallel port interface board, stepper motor, and power supply (right).

Key Features

  • PIC Microcontroller Based — three Microchip PIC DIP40 MCUs handling axis stepping sequences independently
  • Parallel Port (LPT) Interface — receives step/direction signals from PC CNC software via DB25 connector
  • G-Code Compatible — works with standard PC CNC software sending step/direction pulses
  • Multi-Axis Control — independent X, Y, Z stepper motor channels
  • Custom Stepper Driver — transistor/IC-based driver arrays on hand-etched PCB for each stepper coil
  • Screw Terminal Outputs — robust motor wiring connections per axis
  • Separate Power Supply — dedicated SMPS for stepper motor power rail

System Architecture

PC (CNC Software / G-Code)
        │
        │ Parallel Port (LPT / DB25)
        ▼
Parallel Port Interface Board
(Step + Direction signals per axis)
        │
        ▼
PIC Microcontroller Board
(3× PIC DIP40 — one per axis)
(Decodes step pulses → generates stepper sequences)
        │
        ▼
Stepper Driver Board
(Transistor/IC arrays — drives coils)
        │
        ▼
Stepper Motors (X / Y / Z axes)

Hardware Architecture

Block Implementation
PC Interface Parallel port (LPT) DB25 — step/direction signals from CNC software
Controller 3× Microchip PIC DIP40 MCUs — one per axis, stepping sequence generation
Driver ICs ULN2003 / transistor arrays — stepper coil current switching
Stepper Motors Multi-axis motion — X, Y, Z CNC axes
PCBs Hand-etched custom copper boards
Power Dedicated SMPS — motor and logic power rails

Technologies & Tools

  • PIC microcontroller (Assembly / C) — stepper pulse generation firmware
  • Parallel port LPT communication — PC to controller interface
  • Custom PCB etching — hand-fabricated controller and driver boards
  • Stepper motor driver design
  • CNC G-code motion control concepts

Key Achievements

✅ Built a complete CNC controller from scratch using PIC microcontrollers
✅ Implemented parallel port interface for G-code compatibility with standard PC CNC software
✅ Designed and hand-etched all custom PCBs — controller, driver, and interface boards
✅ Independent PIC per axis for reliable multi-axis stepper control
✅ Full system validated with stepper motor motion under PC command
